| 目数 | 3mm 4mm 5mm 3-5mm 4-5mm |
|---|---|
| 名称 | 氧化铁脱硫剂 |
| 化学成份 | AL2O3 |
| 外观 | 黄褐色圆柱状 |
| 有效物质含量 | 99（％） |
| 含量 | 35（％） |
| 包装规格 | 25kg/袋 |
| PH值使用范围 | 3.5-5.0 |
| 执行质量标准 | GB |
| CAS | 合格 |
| 品牌 | 福悦 |
| 型号 | FY-R1 |

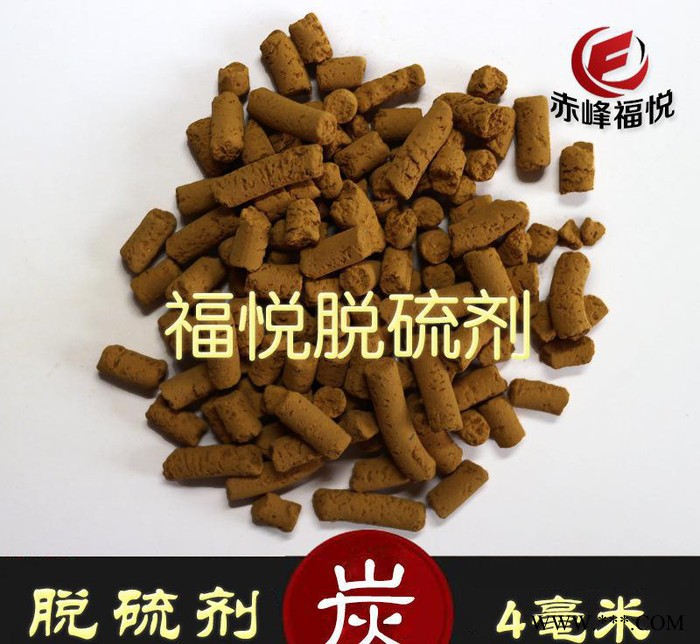

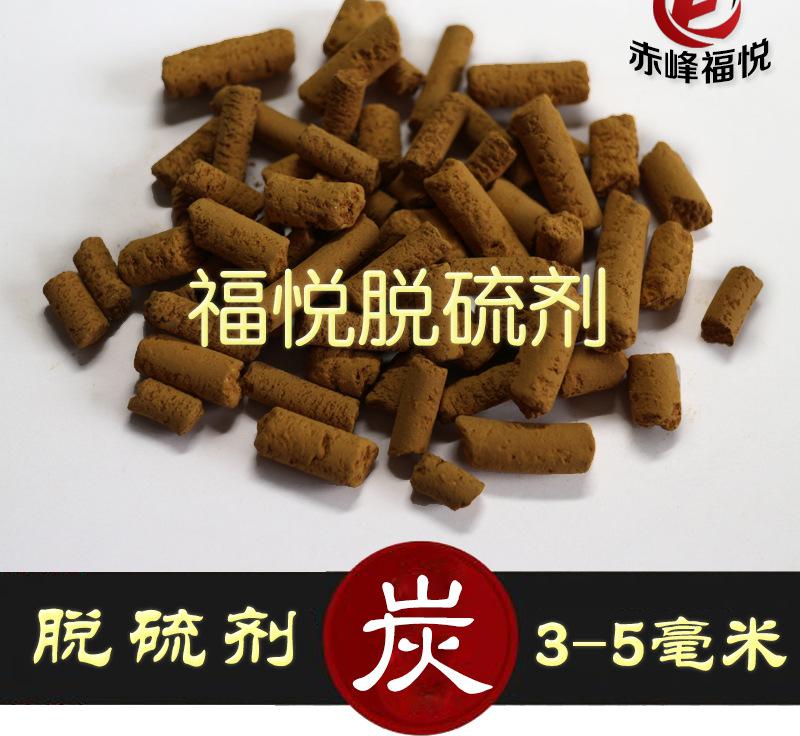

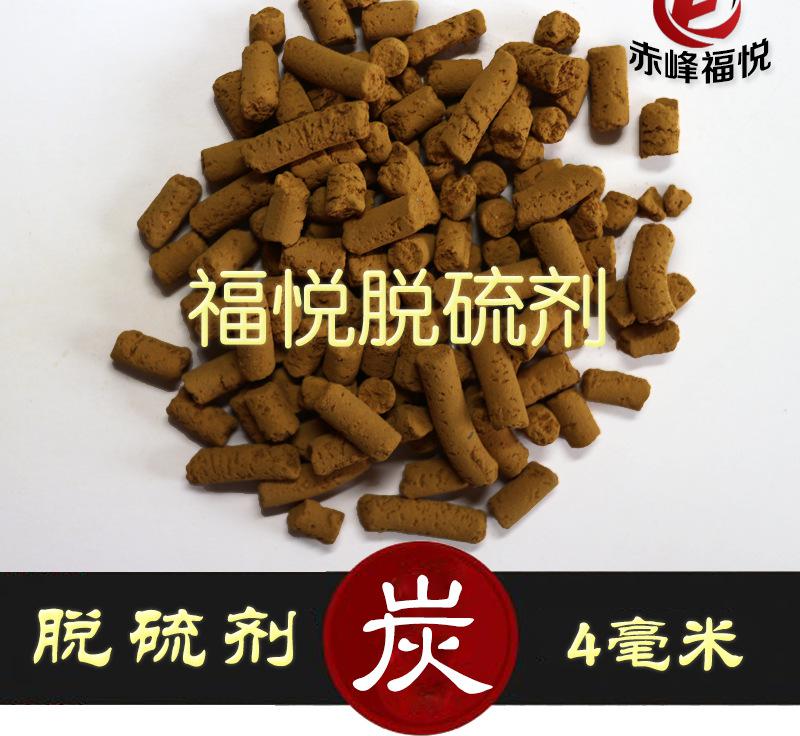

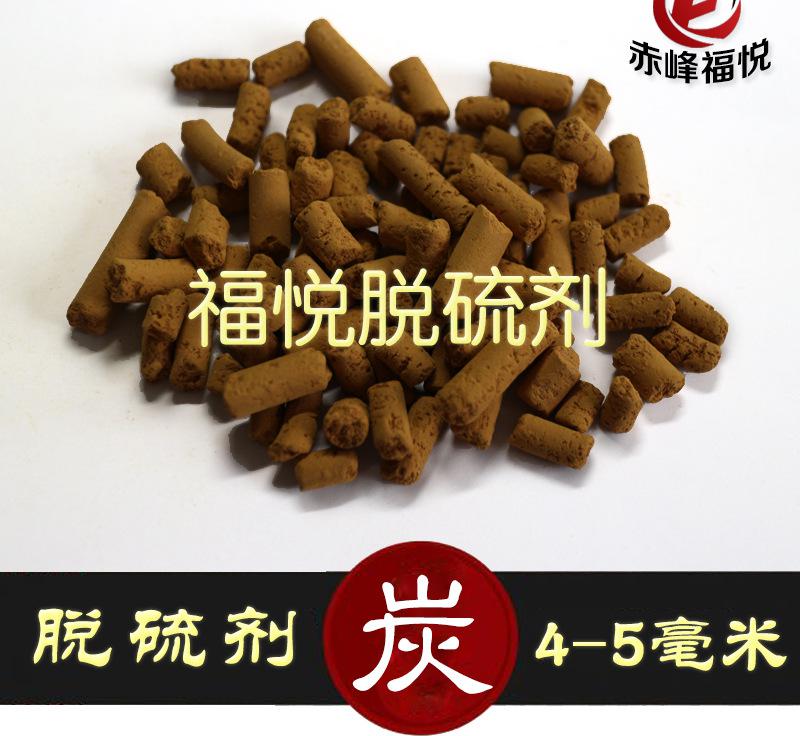

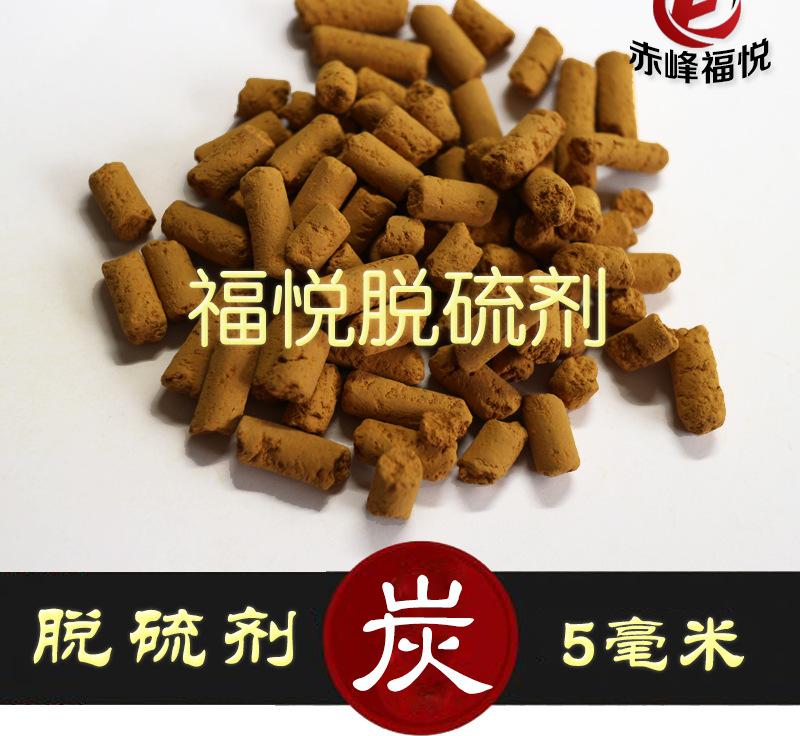

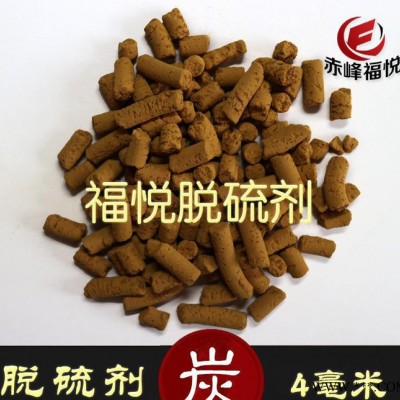

赤峰福悦氧化铁脱硫剂是以氧化铁为主要活性组份，添加其它促进剂加工而成的高效气体净化剂。在20℃～100℃之间，对硫化氢有很高的脱除性能，对硫醇类有机硫和大部分氮氧化物也有一定脱除效果。氧化铁脱硫剂是以活性Fe2O3为主要成份，并添加多种助剂制成。是一种适应性较强的新型高效的干法气体常温脱硫剂，能在常温常压或加压条件下工作。对硫化氢有很高的脱除性能，对硫醇类有机硫和大部分氮氧化物也有一定脱除效果。
赤峰福悦氧化铁脱硫剂因其硫容大、价格低、可在常温（20℃～100℃之间）下空气再生等特点而深受用户欢迎。使用上具有设备简单、操作方便、硫容量大、净化度高，适应性强等特点。
型号 | FY-福悦01 | FY-福悦012 | FY-福悦013 |
外观 | 黄褐色圆柱状 | 黄褐色圆柱状 | 黄揭色圆柱状 |
主要成份 | 氧化铁添加活性组份 | 氧化铁添加活性组份 | 氧化铁添加活性组份 |
规格mm | Φ(3-5)×(3一15) | Φ(3-5)×(3一15) | Φ(3-5)×(3一15) |
侧压强度，N/cm | ≥4D | 45 | 45 |
水容量，% | ≥40 | 45 | 50 |
饱和硫容，mg/L | ≥700 | 800 | 900 |
装填密度，g/L | 700-800 | 650一750 | 600 |
工业硫容，% | ≥4 | 8 | l5 |
水份，% | ≤l0 | l0 | 10 |
备注:工业硫容20～30%，用户提前定货，不能久储。 | |||
氧化铁脱硫剂因其硫容大、价格低、可在常温下空气再生等特点而深受用户欢迎。但也存在着强度差、遇水粉化、脱硫精度不高(1ppm)等不足之处，影响了其工业应用。
针对上述情况，我公司技术人员经过几年潜心研究，开发了HYF系列新型氧化铁脱硫剂，其特点是：
1、脱硫精度高：进口H2SI1000ppm时，出口H2S 0.05ppm，比普通Fe2O3的脱硫精度(1ppm)高20倍；
2、反应速度快：使用空速1000-20000h-1比普通Fe2O3要高3—6倍。
3、工作（透穿）硫容大：在1和2的条件下，一次性精脱H2S硫容有O2时为15—20%，是普通Fe2O3脱硫剂的3—6倍。
4、强度好、耐水性好。水煮2h或浸泡30天不粉化、强度不变。
5、适用温度范围广，5—90℃
6、可在无O2或高CO2条件下应用。无氧时精脱H2S硫容12—15%。
该脱硫剂适用天然气、水煤气、半水煤气、空气煤气、焦炉气、变换气、CO2再生气、食品CO2、钢厂原料气、沼气、石油化工等各种气体的精脱H2S，也可与水解504催化剂配套使用达到H2S+CO2≤0.06ppm,弥补活性炭精脱硫剂的不足，使氧化铁脱硫剂新工艺应用更为广泛。
1、装填
脱硫剂装填好坏直接影响使用效果，必须引起足够重视，整个脱硫剂装填过程应有专人负责，并注意以下几点：
（1）在脱硫塔的格蓖板上先铺设二层网孔小于为8－10目的不锈钢网。
（2）在铁丝网上再铺设一层20－30mm, Φ20－30mm厚的碎焦块。
（3）由于运输、装卸过程中会产生粉尘，装填前需要过筛。
（4）使用专门的装填工具，卸料管应能自由转动，使料能均匀装填反应器四周，严禁从中间倒入脱硫剂，防止装填不匀。
（5）脱硫剂在使用过程中随吸硫量的增大而强度递增，故在脱硫塔中应分层装填。每层按脱硫剂装填高度划线，保证装足、装平、装匀。
（6）装填过程中，严格禁止直接踩踏硫剂，可将木板垫在料层上，再进入扒料和检查装填情况。
（7）脱硫原料气入口处，应装上格蓖板或碎焦块，以防止吹散脱硫剂。
2、使用
（1）脱硫塔一般不必专门加热而耗能，但在室外的脱硫装置冬季必须保温，以免气体过冷，降低脱硫剂活性和床层上积水而恶化操作。
（2）脱硫前应设法除去焦油和水沬。
（3）脱硫剂可一次全部更换，也可按气流方向逐段更换。
（4）定时排放脱硫塔前水分离器和脱硫塔底部积水，严禁气体带液进入脱硫塔。
（5）操作要稳定、使用要合理，以发挥其优良性能。
3、运输
（1）脱硫剂在运输时要轻装轻放、避免震动和碰撞，以免破损。
（2）脱硫剂在保管期间，要防止吸嘲及化学污染。
赤峰市福悦活性炭厂
地 址：内蒙古赤峰宁城县天义镇富家窝铺村（原糖厂南侧）
经 理：李果
手 机：15047259045
Q Q：3271344781
邮 箱：3271344781@qq.com
网 址：https://shop1438707253312.
Product introduction
Iron oxide desulfurization agent is the main active component of iron oxide, adding other accelerators to the processing of high efficiency gas purification agent. In between 20 to 100 degrees Celsius, the hydrogen sulfide has a high removal performance, the thiol organic sulfur and most of the nitrogen oxides also have a certain removal effect. Iron oxide desulfurization agent is the active Fe2O3 as the main component, and add a variety of additives made. Is a new type of high efficient dry gas desulfurization agent, which can work under normal temperature and pressure condition. The hydrogen sulfide has very high removal performance, and it also has a certain effect on the removal of the thiol organic sulfur and most of the nitrogen oxides.
Iron oxide desulfurization agent because of its sulfur capacity, low price, can be at room temperature (20 degrees Celsius to 100 degrees Celsius) under the air regeneration and so on and so on by the user welcome. The device has the advantages of simple equipment, convenient operation, high sulfur capacity, high purification degree and strong adaptability.
Performance characteristics
Iron oxide desulfurization agent because of its high sulfur content, low price, can be recycled at room temperature and so on, and is welcomed by users. But there are also poor strength, meet, desulfurization gouache precision (1ppm) and other shortcomings, affecting its industrial application.
In view of the above situation, our company technical personnel after several years of painstaking research, developed a series of HYF new type of iron oxide desulfurization agent, which is characterized by:
1, high desulfurization accuracy: imported H2SI1000ppm, the export of 0.05ppm H2S, than the average Fe2O3 of the desulfurization accuracy (1ppm) 20 times higher;
2, fast response: the use of 1000-20000h-1 Fe2O3 to be higher than ordinary airspeed 3 - 6 times.
3, work (through) sulfur capacity: under the conditions of 1 and 2, a one-time fine removal of H2S sulfur content of O2 is 20% - 3, 15 - 6 times the average Fe2O3 desulfurization agent.
4, good strength, good water resistance. Boiled 2H or soak for 30 days without powder, strength unchanged.
5, suitable for a wide range of temperature, 90 - 5
6, can be used in the absence of O2 or high CO2 conditions. H2S sulfur content 12 - 15%.
The application of desulfurization of natural gas, water gas and semi water gas, air gas, coke oven gas, gas, and CO2 transform anger, food CO2, steel raw material gas, methane gas, petrochemical and other gases finishing off H2S, and can also be matched with 504 H2S+CO2 hydrolysis catalyst reaches more than 0.06PPM, compensate for the lack of active carbon desulfurization the agent, so that the iron oxide desulfurizer new technology has been widely used.
Packing method
1, loading
Desulfurization agent loading directly affects the use effect, must cause enough attention, the whole process should be responsible for the desulfurization agent loading process, and pay attention to the following points:
(1) in the lattice grate desulfurization tower first laying two layers of mesh is less than 8 - 10 to the stainless steel mesh.
(2) a layer of 20 30mm and then laying on the barbed wire, with the diameter of 20 30mm thick pieces of coke.
(3) due to the transport, loading and unloading process will produce dust, loading before the need to sift.
(4) the use of special loading tools, discharge pipe should be free to rotate, so that the material can be evenly filled around the reactor, it is strictly prohibited from the middle of the desulfurization agent into the.
(5) in the process of using the desulfurization agent with the increase of the amount of sulfur absorption and strength increasing, so in the desulfurization tower should be layered loading. Each layer is filled with a high degree of desulfurization agent, to ensure adequate loading, leveling and loading.
(6) in the loading process, strictly prohibit the direct trample of sulfur agent, the board can be on the material layer, and then enter the grill and check the loading situation.
(7) the raw gas desulfurization entrance should be installed on the grid grate or broken pieces of coke, to prevent blow desulfurizing agent.
2, the use of
(1) the desulfurization tower generally does not need special heating and energy consumption, but in the outdoor desulfurization unit must be insulated in winter, so as to avoid gas too cold, reduce the activity of the desulfurization agent and the deterioration of water on the bed.
(2) should be removed before desulfurization of tar and water droplets.
(3) the desulfurization agent can be replaced at one time, and can be replaced by the air flow direction.
(4) the water separator and the bottom of the desulfurization tower are in a regular discharge of the desulfurization tower, and the liquid gas is strictly prohibited to enter the desulfurization tower.
(5) operation to be stable, the use of reasonable, in order to play its excellent performance.
3, transport
(1) desulfurizer during transportation to avoid collision and vibration light light, so as to avoid damage.
(2) desulfurization agent in the custody period, to prevent pollution and chemical absorption at.
Contact information
Chifeng City, Fu Yue activated carbon plant
Address: Inner Mongolia Chifeng Ningcheng county rich Wo Pu Cun (sugar factory in the South)
Manager: Li Guo
Cell phone: 15047259045
Q:3271344781 Q
Mailbox: 3271344781@qq.com
URL: https://shop1438707253312.
