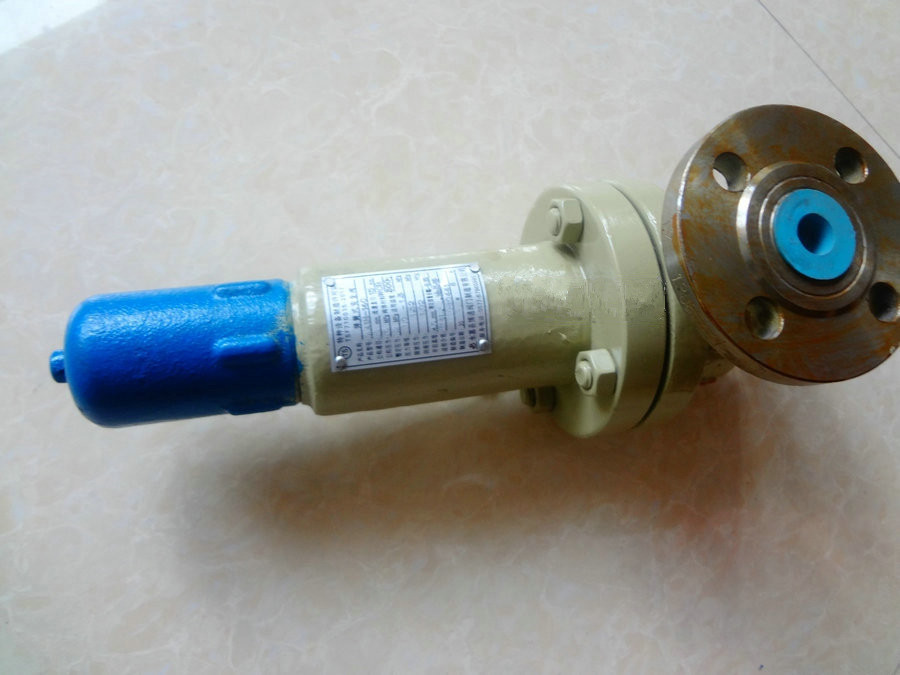

【抗硫安全阀】上海金盾阀门制造有限公司是国内**〖抗硫安全阀〗制造商，为广大的代理商和企业客户解决【抗硫安全阀】；公司自成立以来围绕客户的需求并持续创新，本着质量，安全，售前售后，服务为理念，茸工为您提供抗硫安全阀型号标准、结构尺寸、作用原理、安装维护等详细说明书。
抗硫安全阀尺寸：

型  号	公称		主要结构尺寸(mm)					阀体材料	简要性能
	通径DN(mm)	压力PN(MPa)	D	D1	L	L1	H		适用温度℃	适用介质
KA41Y-320P	15	32.0	105	115	95	95	223	1Cr18Ni9Ti	－40~＋130	酸性天然气
"	20	"						"	"	"
"	25	"						"	"	"
"	32	"	135	165	130	135	334	"	"	"
"	40	"						"	"	"
KA42Y-16C	32	1.6	135	145	115	100	285	铸钢	－40~＋130	酸性天然气
"	40	"	150	160	120	110	278	"	"	"
"	50	"	165	180	135	120	332	"	"	"
"	65	"						"	"	"
"	80	"	20	215	170	135	478	"	"	"
"	100	"	220	245	205	160	590	"	"	"
"	150	"	280	310	255	230	650	"	"	"
KA42Y-40	32	4.0	140	150	115	100	265	铸钢	－40~＋130	酸性天然气
"	40	"	145	160	130	120	278	"	"	"
"	50	"	160	180	145	130	332	"	"	"
"	65	"						"	"	"
"	80	"	195	215	170	150	478	"	"	"
"	100	"	230	245	205	185	590	"	"	"
"	150	"	300	310	255	230	650	"	"	"
KA42Y-64	40	6.4	165	160	130	120	305	铸钢	－40~＋130	酸性天然气
"	50	"	175	180	165	130	462	"	"	"
"	65	"						"	"	"
"	80	"	210	230	175	160	574	"	"	"
"	100	"	250	27	195	195	600	"	"	"
KA42Y-100	40	10.0						铸钢	－40~＋130	酸性天然气
"	50	"						"	"	"
"	65	"						"	"	"
"	80	"						"	"	"
"	100	"						"	"	"
KA42Y-16P	32	1.6	135	145	115	100	265	1Cr18Ni9Ti	－40~＋130	酸性天然气
"	40	"	150	160	120	110	278	"	"	"
"	50	"	165	180	135	120	332	"	"	"
"	65	"						"	"	"
"	80	"	200	215	170	135	478	"	"	"
"	100	"	220	245	205	160	590	"	"	"
"	150	"	280	310	255	230	650	"	"	"
